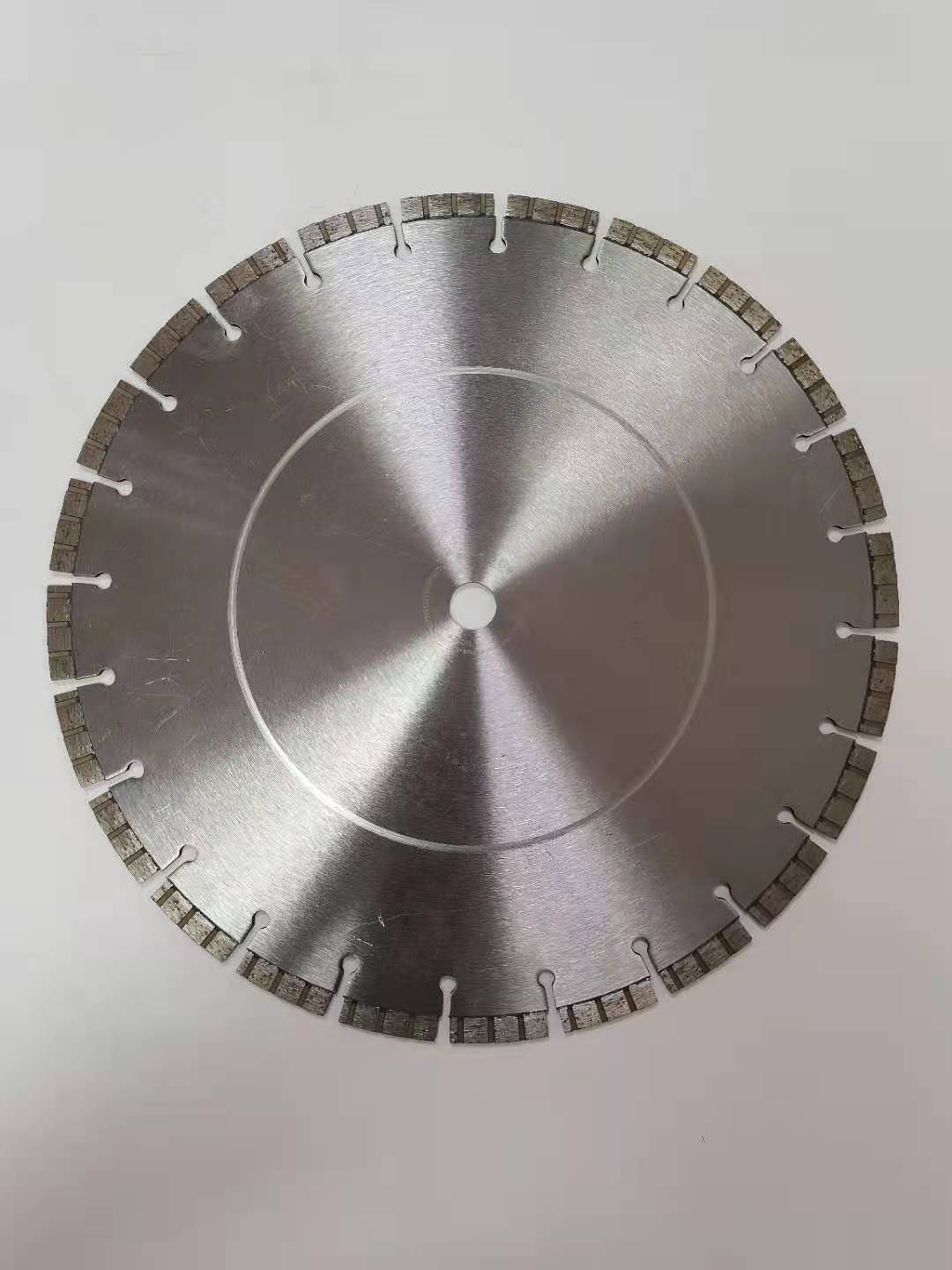

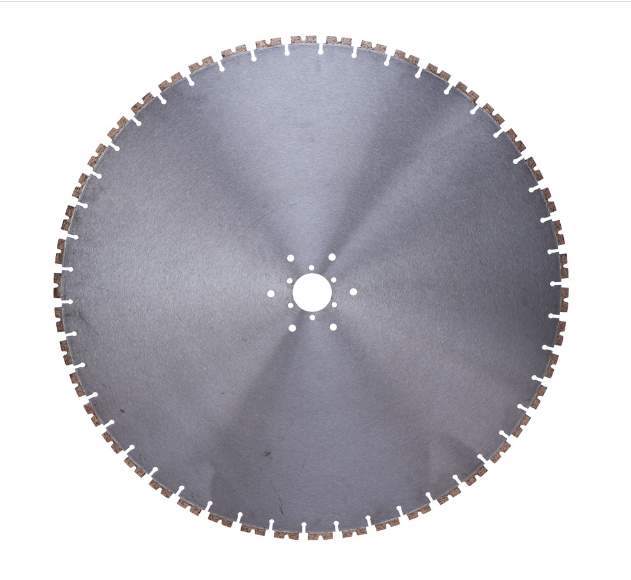

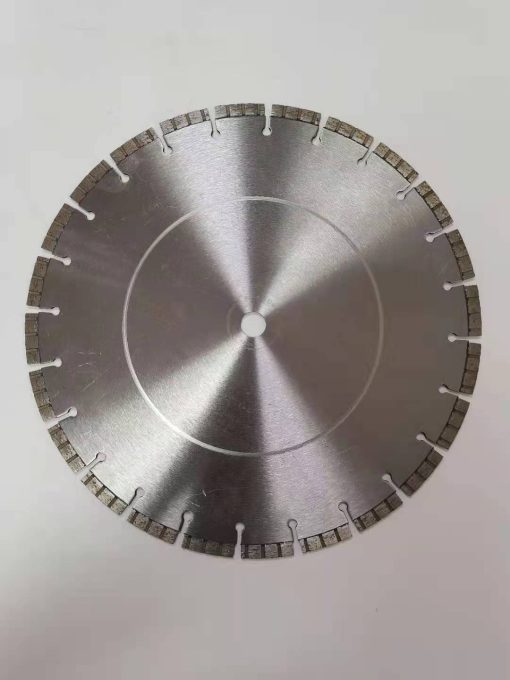

Wall Saw Blade

€72.00 – €312.00

Product Price: ₹/Blade. 18% GST will be added at the time of checkout.
Disclaimer: “Freight Charge: on “To Pay” basis {For Indian Customers Only}“



The minimum order quantity is 1 unit.
SKU: N/A Categories: ,

Description

Concrete wall saw blade is mainly used for the cutting of reinforced concrete walls, brick walls, and other stone materials, as well as the renovation and reinforcement of old buildings. It can also cut large-area walls, such as door holes, windows, or elevator holes.



Our Blades can be re-tipped and thus be reused. Our blades for wall cutting are designed using special technology segments, which allow for faster cutting and a good life span. Our hot pressed Segments are designed for better diamond retention and even wear of the segment throughout the cutting cycle. The wall saw segments are always welded on the specially designed steel core which allows the blades to run on highly reinforced as well as non-reinforced concrete. Further, our wall saw blades can operate on low to high horsepower machines.

Abore Hole (mm): 50 to 60 mm

Additional information

Weight N/A
Size of Blade

24 inch, 26 inch, 28 inch, 30 inch, 32 inch, 40 inch
Height of Segment

10 MM, 12 MM

Instructions to use

  • Inspect the blade for bending or damage during transit or previous use. Do not use the blade if damage is evident or suspected.
  • Make sure to choose the right diamond blade suitable for the material to be cut.
  • The spindle diameter and the bore hole of the blade must be identical
  • The material to be cut should be Hardened and firmly laid or clamped
  • Do not make a long continuous cut, cool the blade by taking away from the material for at least 10 second every minute
  • Cut a soft brick or sandstone to re sharpen the blade when it becomes dull.
  • Always try to us water as a coolant to prevent dust. Loud noise and the blade overheating.
  • Always wear a face shield, mask, ear defenders and protective goggles.
  • A protective guard must be mounted.
  • Inspect the blade frequently for signs of heat cracking or fatigue to the diamond segments.
  • Cutting blades are not suitable for curve cutting, circle cutting and grinding purpose.
  • Do not force cutting, it will damage the blade and cause the segments to break or even fly off
  • Keep the blade cutting straight forward, do not bend it out of the cutting line.
  • Never exceed the Max. RPM marked on the blade, according to different materials to be cut, the speed should reduce 30-40 % from the max RPM
