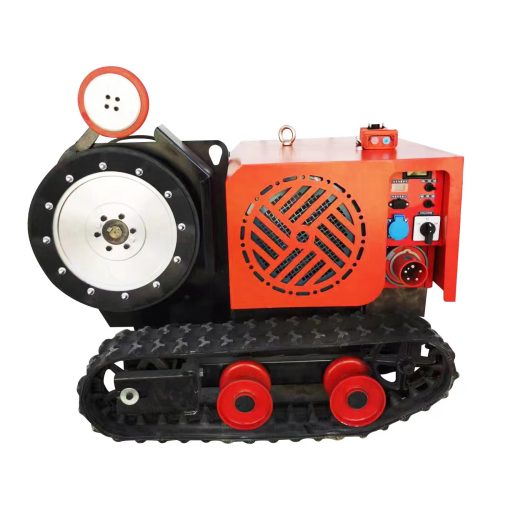

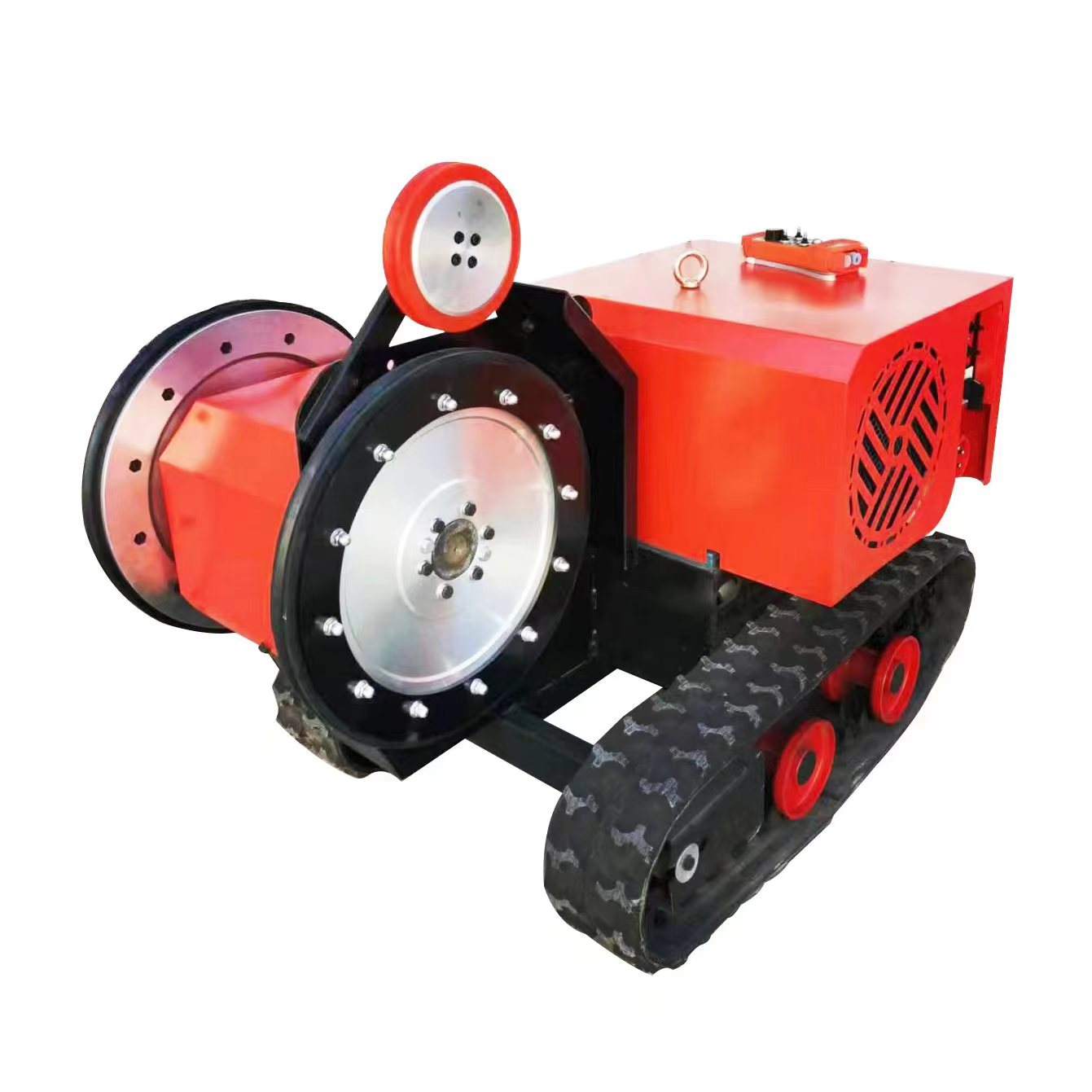

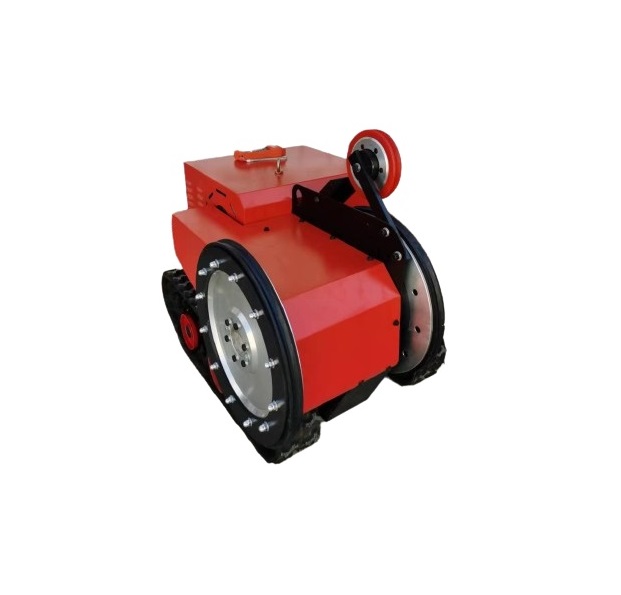

A Crawler Wire Saw Machine self-propelled diamond wire saw-cutting machine is suitable for various complex working for bridges, and rock cutting.
A Crawler Wire Saw Machine self-propelled diamond wire saw-cutting machine is suitable for various complex working for bridges, bridge piers, bridge decks, walls of construction sites, beams and columns, tunnels and underwater reinforced concrete, and rock cutting.
-After the battery is charged, it can walk by itself, and it can get on and off automatically without power on.
-In small sizes, more tools can be loaded on the car.
-No need to disassemble and install, saving time and effort.
-When cutting, the machine can realize continuous rope retraction (judged according to the size of the construction site. Contact Us

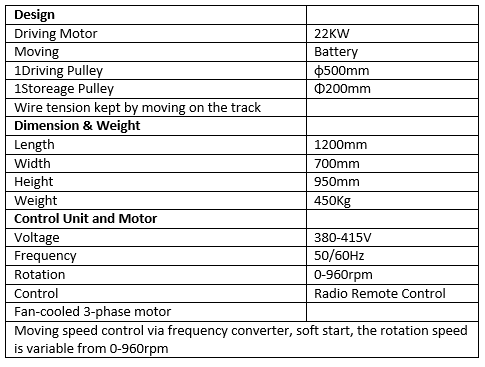

22kw Technical Specification
37kw Technical Specification
| Driving Motor | 22KW |
|---|---|
| Moving | Battery |
| 1Driving Pulley | φ500mm |
| 1Storeage Pulley | φ200mm |
| Length | 1200mm |
| Width | 700mm |
| Height | 950mm |
| Weight | 450KG |
| Voltage | 380-415V |
| Frequency | 50/60Hz |
| Rotation | 0-960rpm |
| Control | Radio Remote Control |
